Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon
Brief Introduction --- Arc Rail Transport Wagon
KPT series Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon is powered by mobile cable. It conducts AC 380V directly into the electrical control system of the arc rail transport wagon to let it start, stops, goes forward and backward and so on. The transport wagon is powered by dragging cable winch is laid on the ground. The cable line is placed between the two rails. The operation system is low voltage 36V power.
Product Details--- Arc Rail Transport Wagon
 |  |  |
| Steel Welding Frame | Cast Steel Wheel | Mobile Cable |
 |  |  |
| Reducer | Handle & Remote Control | Sound & Light Alarm |
Product Features --- Arc Rail Transport Wagon
1.Maintenance-free, long service life, as long as it can be moved, steel can be used without rust；
2.Suitable for short distance transportation；
3.High efficiency, large load capacity, can transport a lot of materials at a time；
4.One person is enough to save costs and save manpower；
5.Simple operation, with remote control button and joystick operation；
6.There are people stop and danger warning lights on the transport wagon, safe operation.
Advantages --- Arc Rail Transport wWagon
Safe and environment friendly
Big starting power
Small impact to the gear reducer
No restriction of the running distance
Can running on s-shape rail, arc-shape rails
Has no limit on working distance
Anti-explosion, anti-high temperature
Long lifetime
Parameter List --- Arc Rail Transport Wagon
| Model | KPT-2T | KPT-5T | KPT-10T | KPT-20T | KPT-30T | KPT-50T | KPT-100T | KPT-150T |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Arc Rail Transport Wagon
Arc rail transport wagon can be used for short-distance transportation. They can be transported indoors or outdoors. They are mainly used in large steel plants, accessory factories, shipyards, and mold factories.
Tags:Heavy Duty Transfer Carts,Industrial Rail Trolley
|
|

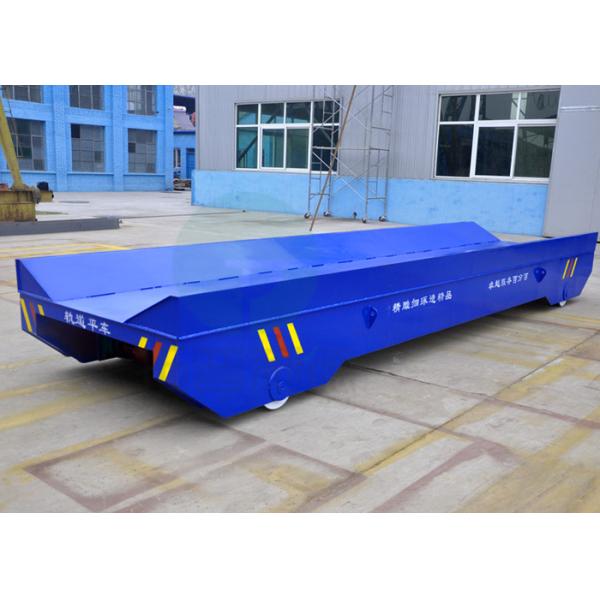

Precast Concrete Industry Plant Motorized Handling Load Arc Rail Transport Wagon Images
|
