5t diesel winch wide application in construction industry
Brief Introduction of diesel winch
Diesel Winch a self contained single drum, diesel powered winch.The drum is fitted with a foot controlled band brake and is powered by a diesel engine via a torque converter and gear train.
The winch speed is controlled through the engine throttle and two-speed forward and reversing gear lever.
Technical Parameter of diesel winch
| Model | Rated Load
(KN) | Rated Speed | Rope Capacity
(m) | Rope Diameter
(mm) | Motor Type | Motor Power
(kw) | Weight
(kg) |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 270 |
| JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 500 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1100 |
| JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 536 |
| JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1560 |
| JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1800 |
| JM5C | 50 | 9.5 | 350 | 21.5 | YZR160L-6 | 11 | 1800 |
| JM5D | 50 | 15 | 350 | 21.5 | YZR180L-6 | 15 | 1850 |
| JM5E | 50 | 20 | 350 | 21.5 | YZR200L-6 | 22 | 2000 |
| JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2900 |
| JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 2650 |
Working Principle of diesel winch
The winch transforms diesel energy into mechanical energy through the gear, Through the brake and the reducer reduces speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.
Diesel Winch Application
The diesel winch can widely applied in mining, metallurgical, lifting, construction, chemical, road and bridge, water and electricity installed the terminal, oil and other industries.
Package and Transportation
Relative Products:
About Us
Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and handling equipment. Our products cover rail transfer car, steerable transfer car, trackless flat cart, bay to bay rail transfer cart, rail wheel, industrial winch, steel rail and rail accessories etc. Our products have a wide application field including metallurgy industry, machinery manufacturing industry, steel mill, mine industry, power industry, mold industry, automobile assembly industry, shipyard industry etc.
|
|

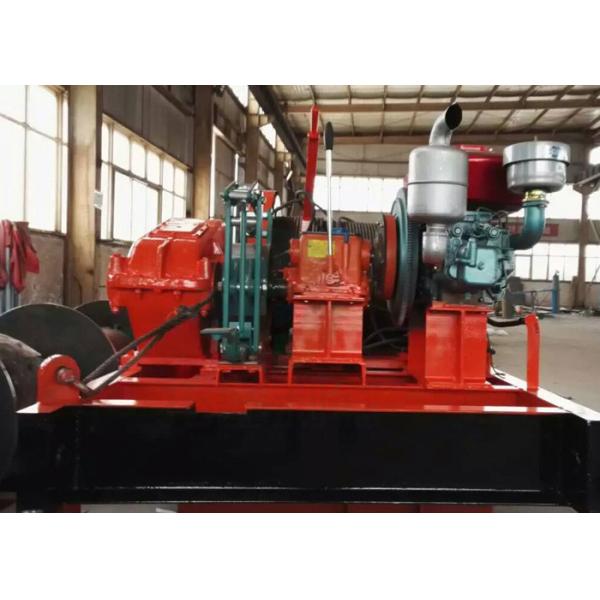

5t diesel winch wide application in Africa construction industry Images
|
